Structural · S-ZW5KE

Stair Hanger Connection at Wide Flange Beam

Materials

Steel

Elements

Beams Stairs Connections / Plates

Connections

Moment Connection Bolted Connection

About this detail

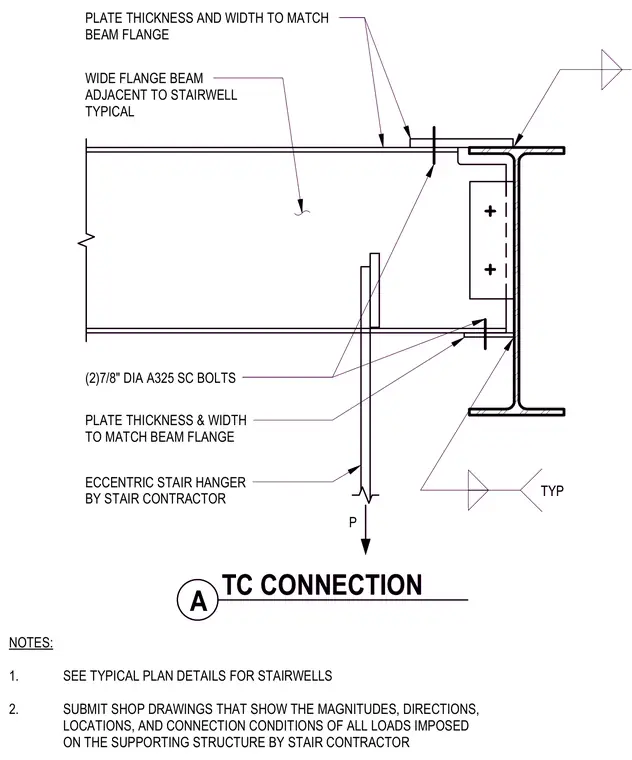

An eccentric stair hanger connection frames into a wide flange beam adjacent to a stairwell. Steel connection plates matching the thickness and width of the beam flange are secured with two 7/8-inch diameter A325 slip-critical bolts. The eccentric stair hanger is provided by the stair contractor. Notes require coordination with typical stairwell plan details and submittal of shop drawings detailing all applied loads and connection conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
