Structural · S-ZVYYA

Column to Continuous Beam Bolted Connection

Materials

Steel

Elements

Beams

Connections

Bolted Connection

About this detail

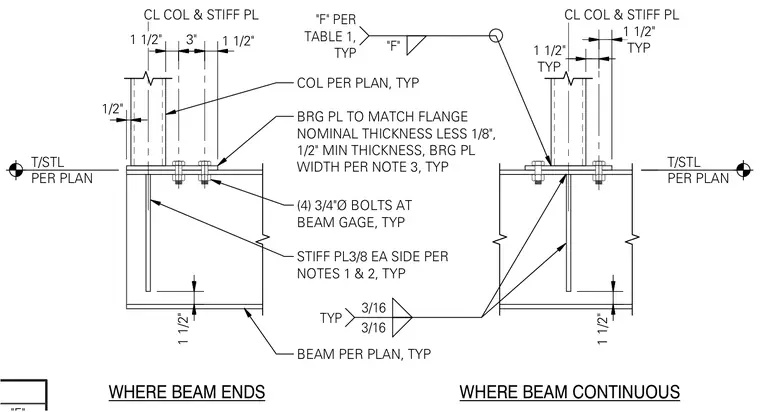

A structural steel column bears on a continuous steel beam with a bearing plate sized to match the flange nominal thickness less one-eighth inch, maintaining a one-half inch minimum thickness and width per notes. Four three-quarter inch diameter bolts secure the column base plate at the beam gauge. Three-eighth inch stiffener plates are welded to each side of the beam web with three-sixteenth inch fillet welds. A fillet weld size "F" per table 1 is applied at the column-to-bearing-plate connection. The assembly provides structural support for both continuous beam conditions and beam ends.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
