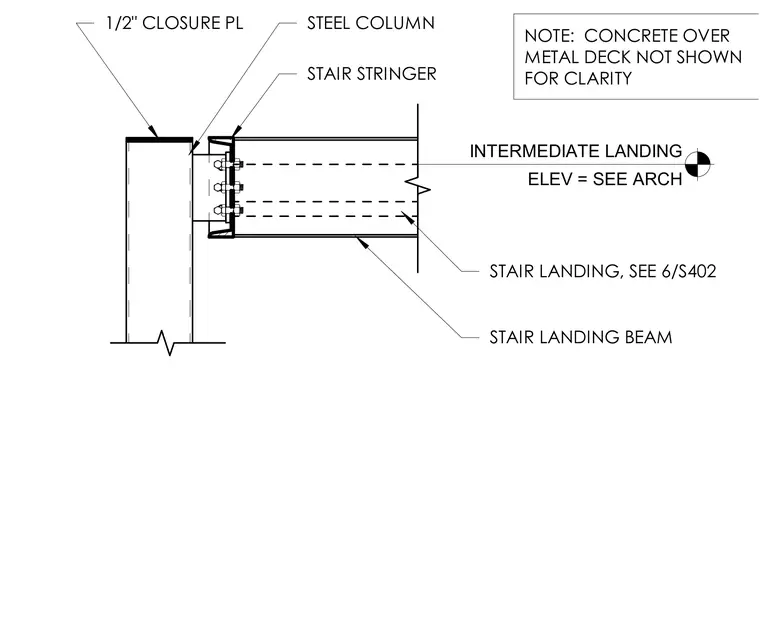

A steel stair stringer connects to a structural steel column at an intermediate landing, utilizing a bolted connection with a one-half-inch closure plate capping the top of the column. The stair landing beam frames into the assembly, with concrete over metal deck omitted for clarity. The intermediate landing elevation is coordinated with architectural drawings, and the stair landing detail references sheet S402.
NOTE: CONCRETE OVER METAL DECK NOT SHOWN FOR CLARITY STEEL COLUMN STAIR STRINGER INTERMEDIATE LANDING ELEV = SEE ARCH STAIR LANDING, SEE 6/S402 STAIR LANDING BEAM 1/2" CLOSURE PL
