A structural steel beam supports a metal roof deck with a 3/16 inch fillet weld. A steel joist connects adjacent framing, featuring a beam web stiffener on each side welded with a 1/4 inch fillet weld. A continuous hollow structural section measuring HSS 10x5x3/16 acts as a curtain wall support. The backup wall consists of 3-5/8 inch by 18 gauge cold-formed steel studs spaced at 16 inches on center within continuous top and bottom tracks of 3-5/8 inch by 16 gauge steel. Three number 12 self-tapping screws secure each stud intersection.

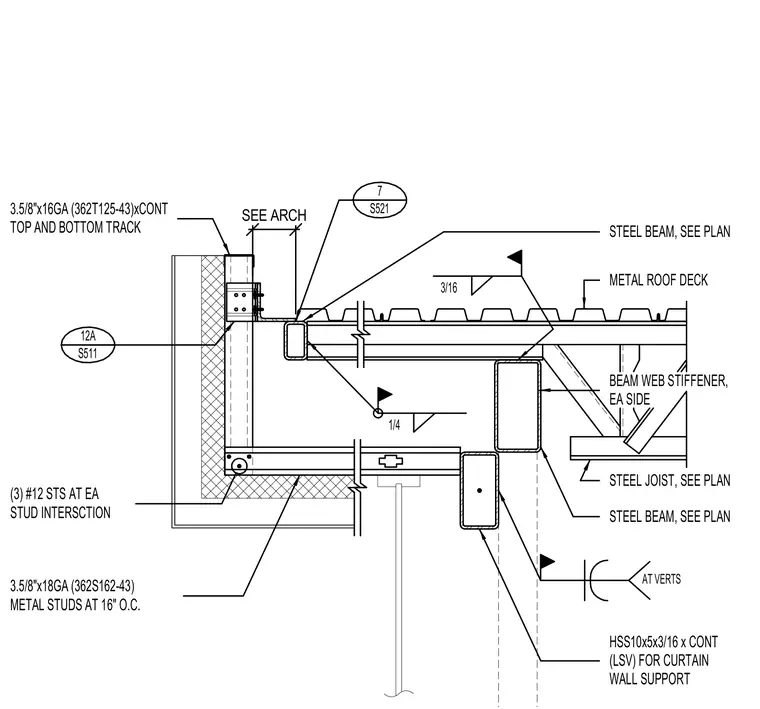

STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN METAL ROOF DECK 3.5/8"x16GA (362T125-43)xCONT TOP AND BOTTOM TRACK (3) #12 STS AT EA STUD INTERSCTION BEAM WEB STIFFENER, EA SIDE 3/16 3.5/8"x18GA (362S162-43) METAL STUDS AT 16" O.C. 1/4 STEEL JOIST, SEE PLAN AT VERTS HSS10x5x3/16 x CONT (LSV) FOR CURTAIN WALL SUPPORT 7 S521 12A S511 SEE ARCH
