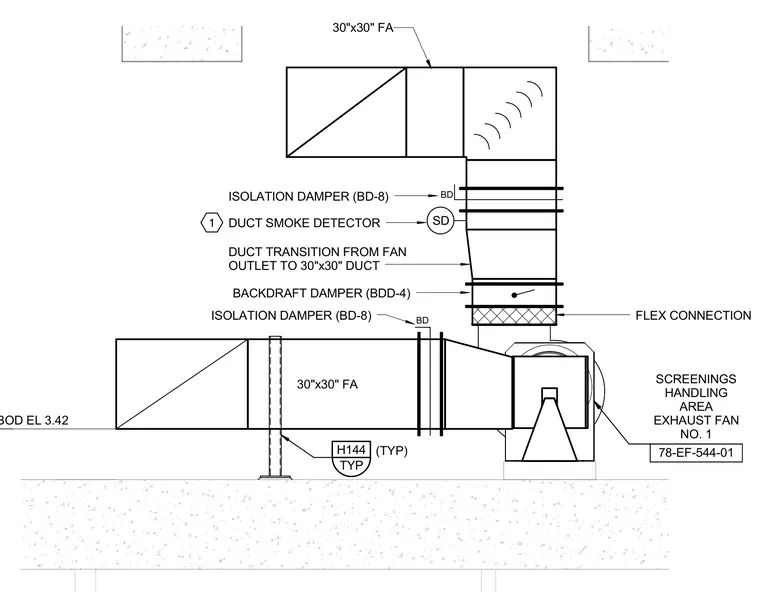

An exhaust fan discharges into a transition duct fitted with a flexible connection, a backdraft damper, and an isolation damper. A duct smoke detector and an additional isolation damper are installed along the vertical duct run before it transitions to a thirty by thirty inch fresh air duct. A horizontal thirty by thirty inch duct is supported by standard hanger details above a concrete slab. The exhaust fan is mounted on a housekeeping pad at bottom of duct elevation 3.42.
30"x30" FA 30"x30" FA 78-EF-544-01 SCREENINGS HANDLING AREA EXHAUST FAN NO. 1 BD ISOLATION DAMPER (BD-8) DUCT TRANSITION FROM FAN OUTLET TO 30"x30" DUCT FLEX CONNECTION SD BD ISOLATION DAMPER (BD-8) BOD EL 3.42 DUCT SMOKE DETECTOR 1 BACKDRAFT DAMPER (BDD-4) TYP H144 (TYP)
