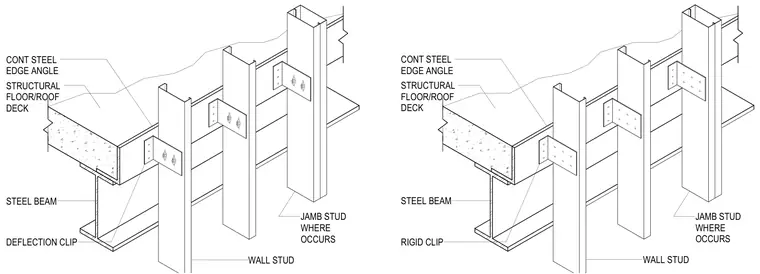

Cold-formed steel wall studs bypass the structural floor or roof deck supported by a steel beam. A continuous steel edge angle frames the perimeter of the deck. Deflection clips or rigid clips connect the wall studs and jamb studs to the structure where required.
WALL STUD STEEL BEAM STRUCTURAL FLOOR/ROOF DECK CONT STEEL EDGE ANGLE DEFLECTION CLIP JAMB STUD WHERE OCCURS WALL STUD STEEL BEAM STRUCTURAL FLOOR/ROOF DECK CONT STEEL EDGE ANGLE RIGID CLIP JAMB STUD WHERE OCCURS
