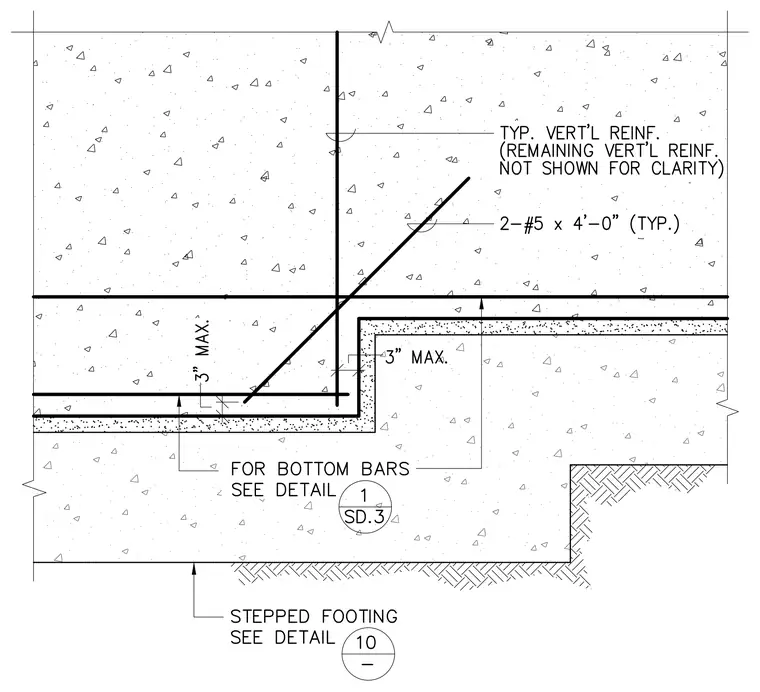

Stepped bottom condition of a concrete wall panel featuring typical vertical reinforcement along with two number five bars by four feet long typically positioned at the step. A maximum three-inch dimension governs the step geometry and clearance limits. Bottom bars reference a separate detail one on sheet SD.three, while the stepped footing references detail ten. Remaining vertical reinforcement is omitted for clarity.
