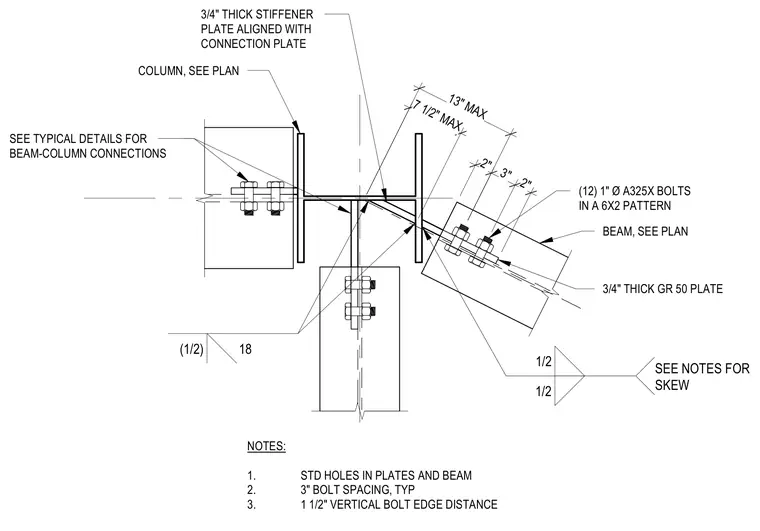

A skewed steel beam frames into a structural steel column flange using a three-quarter-inch thick Grade 50 connection plate welded with a half-inch fillet weld. A matching three-quarter-inch thick stiffener plate is aligned with the connection plate on the opposite flange. Twelve one-inch diameter A325X bolts secure the beam web in a six-by-two pattern with standard holes in both plates and beam web. Bolt spacing is three inches typical with a one-and-a-half-inch vertical bolt edge distance.
13" MAX 7 1/2" MAX 2" 3" 2" COLUMN, SEE PLAN BEAM, SEE PLAN SEE TYPICAL DETAILS FOR BEAM-COLUMN CONNECTIONS (12) 1" Ø A325X BOLTS IN A 6X2 PATTERN 3/4" THICK GR 50 PLATE 1/2 1/2 SEE NOTES FOR SKEW 3/4" THICK STIFFENER PLATE ALIGNED WITH CONNECTION PLATE (1/2) 18 NOTES: 1. STD HOLES IN PLATES AND BEAM 2. 3" BOLT SPACING, TYP 3. 1 1/2" VERTICAL BOLT EDGE DISTANCE
