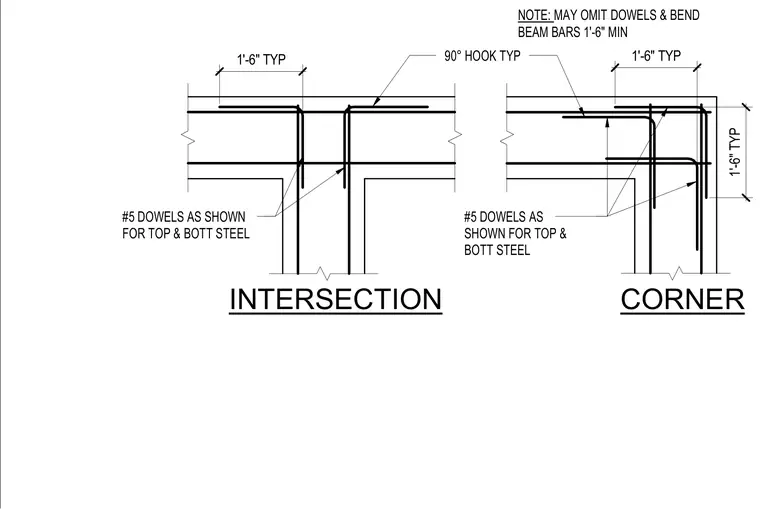

Grade beam and intersecting beam reinforcement features number five top and bottom dowels with a one-foot six-inch typical lap length. A ninety-degree hook terminates the longitudinal bars at the corner and intersection conditions. The corner condition allows omitting dowels by bending the continuous beam bars one foot six inches minimum into the perpendicular member.
CORNER NOTE: MAY OMIT DOWELS & BEND BEAM BARS 1'-6" MIN 1'-6" TYP INTERSECTION 90° HOOK TYP 1'-6" TYP #5 DOWELS AS SHOWN FOR TOP & BOTT STEEL 1'-6" TYP #5 DOWELS AS SHOWN FOR TOP & BOTT STEEL
