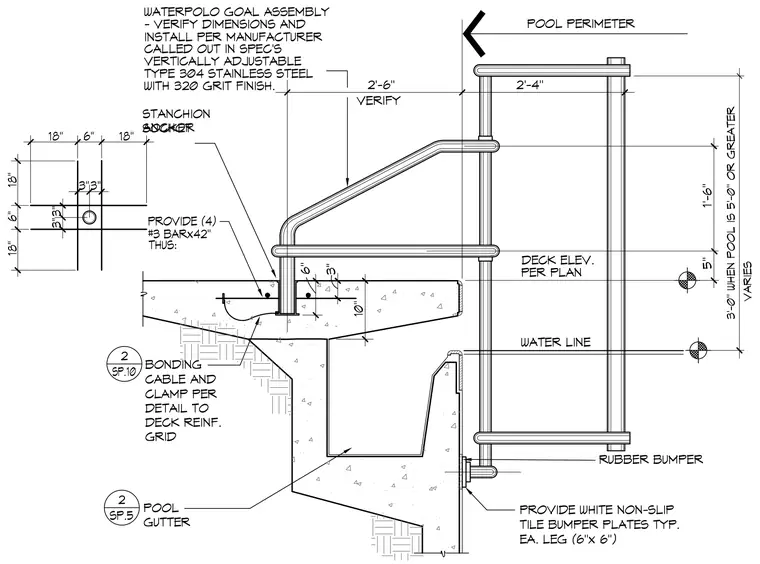

A vertically adjustable Type 304 stainless steel waterpolo goal assembly with a 320 grit finish is installed at a concrete pool deck and gutter. The stanchion anchor socket is embedded into the concrete slab and reinforced with four number three bars measuring forty-two inches in length. A bonding cable and clamp connect the anchor assembly to the deck reinforcement grid per electrical requirements. Rubber bumper tile bumper plates measuring six inches by six inches are provided on each leg at the pool wall. Dimensions indicate specific clearances and heights relative to the water line and deck elevation.
RUBBER BUMPER TILE BUMPER PLATES TYP. EA. LEG (6''x 6'') PROVIDE WHITE NON-SLIP POOL PERIMETER BONDING DETAIL TO CABLE AND CLAMP PER GRID DECK REINF. GUTTER POOL 6'' WATER LINE PER PLAN DECK ELEV. STANCHION ANCHOR SOCKET - VERIFY DIMENSIONS AND CALLED OUT IN SPEC'S VERTICALLY ADJUSTABLE WATERPOLO GOAL ASSEMBLY INSTALL PER MANUFACTURER VERIFY 2'-6'' 2'-4'' 3'-0'' WHEN POOL IS 5'-0'' OR GREATER 5'' VARIES 1'-6'' 10'' 2 SP.10 WITH 320 GRIT FINISH. TYPE 304 STAINLESS STEEL 3"3" 6" 18" 18" 3"3" 18" 6" #3 BARx42'' PROVIDE (4) THUS: 2 SP.5 3'' 18"
