A continuous five-sixteenth-inch bent plate is positioned at the perimeter face of cladding and bears on a structural steel beam per plan with a two-inch minimum bearing requirement. The steel roof deck spans across the beam flange with a maximum one-foot span condition. Fillet welds join the assembly with three-sixteenth-inch welds spaced at twelve inches. The edge condition maintains a maximum four-and-three-quarter-inch clearance from the cladding face to the centerline of the beam.

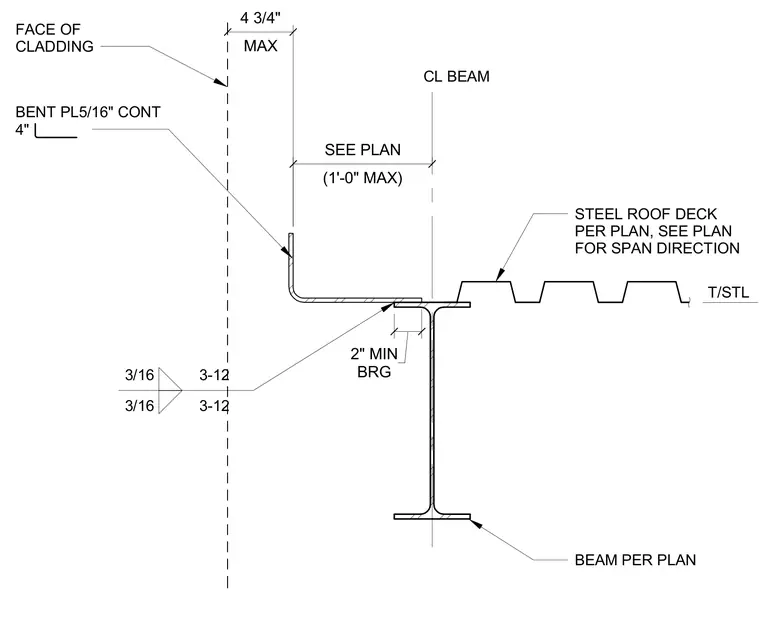

T/STL 3/16 3-12 3/16 3-12 STEEL ROOF DECK PER PLAN, SEE PLAN FOR SPAN DIRECTION (1'-0" MAX) SEE PLAN FACE OF CLADDING BENT PL5/16" CONT 4" BRG 2" MIN BEAM PER PLAN CL BEAM MAX 4 3/4"
