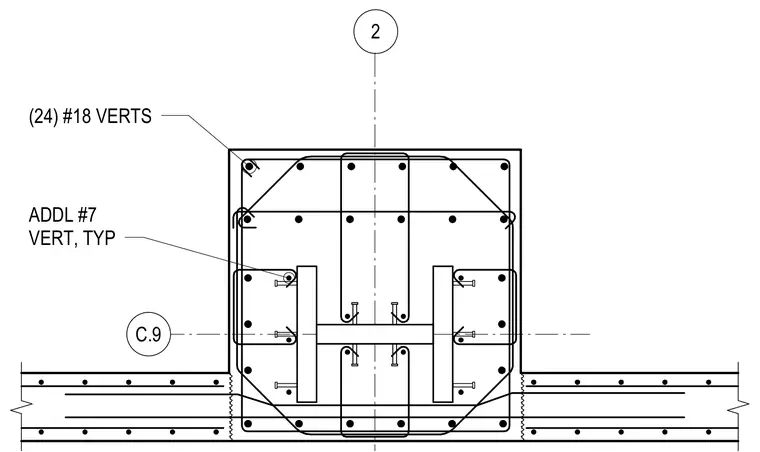

A reinforced concrete column section features twenty-four number 18 vertical reinforcing bars distributed around the perimeter with additional number 7 vertical bars typically placed near internal steel elements. A structural steel shape with attached plates and studs is embedded centrally within the concrete column. Intersecting concrete walls extend from the column boundary with continuous longitudinal reinforcement and transverse ties.
