Cold-formed steel kickers attach to overhead metal deck using low velocity powder-actuated fasteners. The perpendicular configuration utilizes an L 68 mil 5 inch by 4 inch by one foot four inches long angle secured with 0.145 inch diameter by one and one-quarter inch minimum embedment Ramset or Redhead 1500 series fasteners at three-inch minimum spacing. The parallel configuration utilizes an L 68 mil 3 inch by 2 inch by 11 inches long angle fastened similarly into the deck flutes. Kicker size and spacing are determined per wall sections.

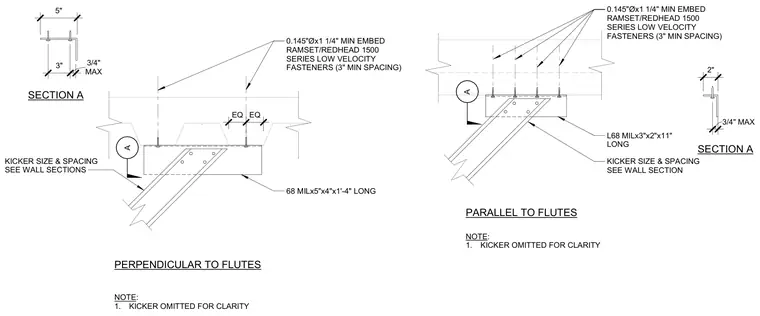

A A 3/4" MAX 2" 0.145"Øx1 1/4" MIN EMBED RAMSET/REDHEAD 1500 SERIES LOW VELOCITY FASTENERS (3" MIN SPACING) L68 MILx3"x2"x11" LONG KICKER SIZE & SPACING SEE WALL SECTION EQ EQ 0.145"Øx1 1/4" MIN EMBED RAMSET/REDHEAD 1500 SERIES LOW VELOCITY FASTENERS (3" MIN SPACING) 68 MILx5"x4"x1'-4" LONG KICKER SIZE & SPACING SEE WALL SECTIONS 5" 3" MAX 3/4" NOTE: 1. KICKER OMITTED FOR CLARITY PERPENDICULAR TO FLUTES PARALLEL TO FLUTES NOTE: 1. KICKER OMITTED FOR CLARITY SECTION A SECTION A
