A wide-flange column base plate connection is secured with eight ASTM F1554 Grade 55 anchor bolts having a twenty-inch embedment and plate washers. The base plate features two-inch-diameter holes and is supported over one and a half inches of non-shrink grout. Half-inch stiffener plates are welded to each side of the member using five-sixteenth-inch fillet welds. Below the base plate assembly, a rebar cage configured with five number five ties provides foundational reinforcement.

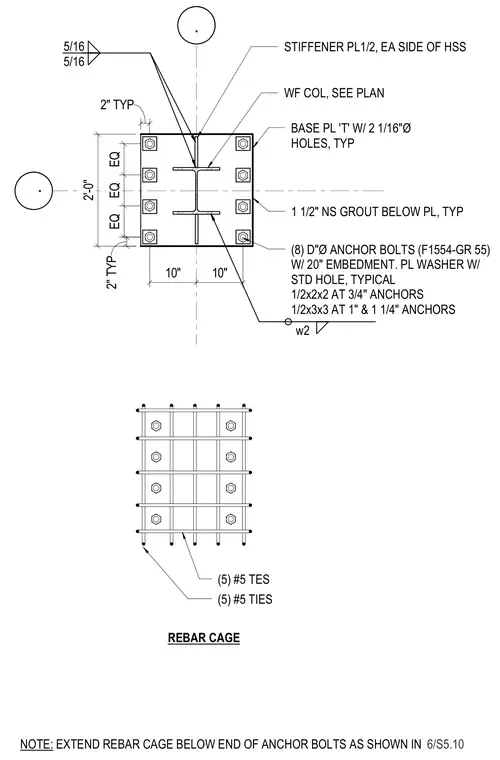

. . (8) D"Ø ANCHOR BOLTS (F1554-GR 55) W/ 20" EMBEDMENT. PL WASHER W/ STD HOLE, TYPICAL 1/2x2x2 AT 3/4" ANCHORS 1/2x3x3 AT 1" & 1 1/4" ANCHORS BASE PL 'T' W/ 2 1/16"Ø HOLES, TYP WF COL, SEE PLAN 1 1/2" NS GROUT BELOW PL, TYP w2 2" TYP 2" TYP EQ EQ EQ STIFFENER PL1/2, EA SIDE OF HSS 5/16 5/16 REBAR CAGE NOTE: EXTEND REBAR CAGE BELOW END OF ANCHOR BOLTS AS SHOWN IN 6/S5.10 2'-0" 10" 10" (5) #5 TIES (5) #5 TES
