Embed plates are shown as viewed from the back side within a reinforced concrete wall. Reinforcing bars are bent to terminate at the panel centerline. Standard hooks are provided for bars where interference such as a panel joint occurs.

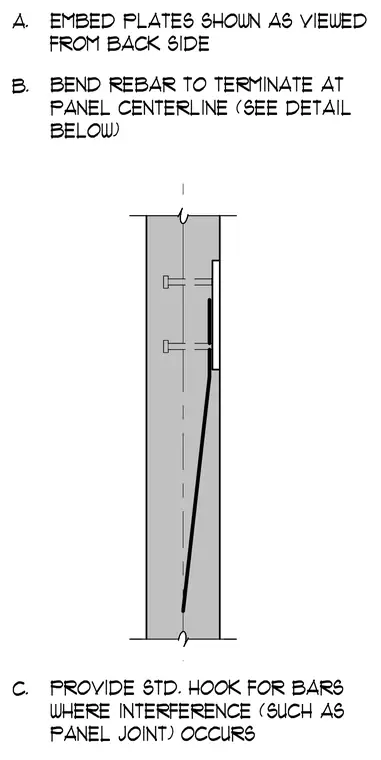

A. EMBED PLATES SHOWN AS VIEWED FROM BACK SIDE B. BEND REBAR TO TERMINATE AT PANEL CENTERLINE (SEE DETAIL BELOW) C. PROVIDE STD. HOOK FOR BARS WHERE INTERFERENCE (SUCH AS PANEL JOINT) OCCURS
