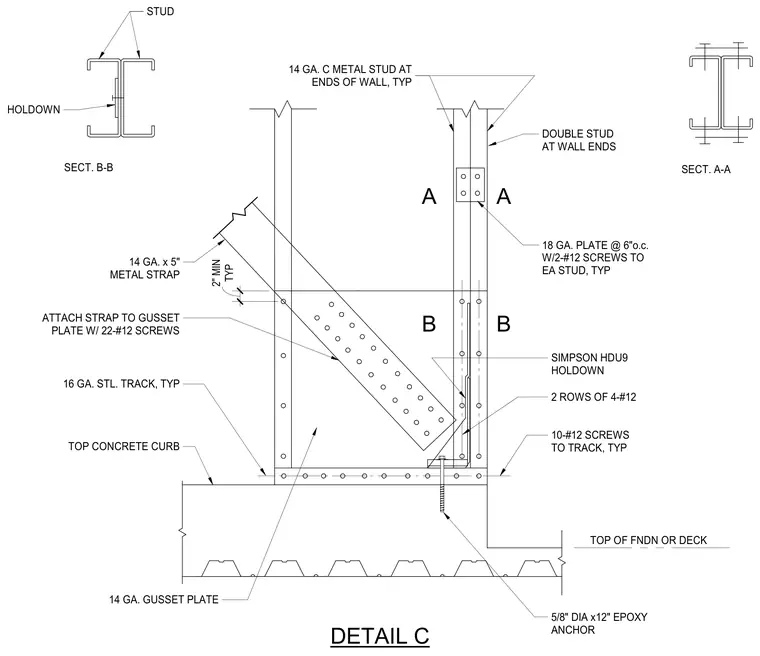

A cold-formed steel strap and gusset plate connection anchors to a concrete curb. A fourteen-gauge by five-inch metal strap connects to a fourteen-gauge gusset plate using twenty-two number twelve screws. The gusset plate ties into a sixteen-gauge steel track secured with ten number twelve screws. At the wall end, double studs incorporate a Simpson HDU9 hold-down anchored with a five-eighths-inch diameter by twelve-inch epoxy anchor into the concrete below. Additional eighteen-gauge plates spaced at six inches on center attach to each stud with two number twelve screws.
DETAIL C SECT. B-B B B A A SECT. A-A 14 GA. GUSSET PLATE HOLDOWN STUD 14 GA. x 5" METAL STRAP ATTACH STRAP TO GUSSET PLATE W/ 22-#12 SCREWS 16 GA. STL. TRACK, TYP TOP CONCRETE CURB 10-#12 SCREWS TO TRACK, TYP 2 ROWS OF 4-#12 SIMPSON HDU9 HOLDOWN 18 GA. PLATE @ 6"o.c. W/2-#12 SCREWS TO EA STUD, TYP DOUBLE STUD AT WALL ENDS 14 GA. C METAL STUD AT ENDS OF WALL, TYP TOP OF FNDN OR DECK 5/8" DIA x12" EPOXY ANCHOR TYP 2" MIN
