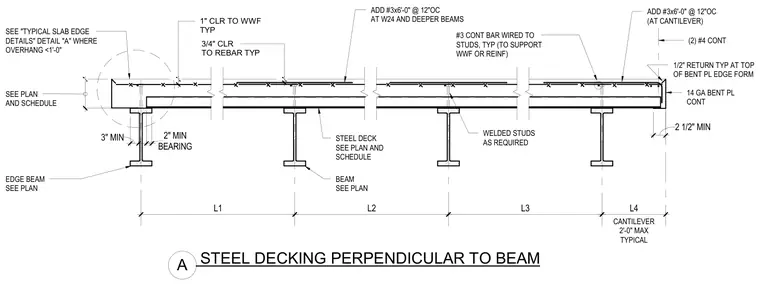

A reinforced concrete slab bears on steel beams with steel decking spanning perpendicular to the framing members. Welded studs secure the deck and provide composite action to the supporting beams. Additional number three reinforcing bars at twelve inches on center reinforce deep beams and cantilevered slab edges up to two feet maximum. A continuous fourteen-gauge bent plate serves as the edge form with a half-inch return at the top. Cover requirements include one inch to welded wire fabric and three-quarters of an inch to reinforcing bars.
ADD #3x6'-0" @ 12"OC (AT CANTILEVER) STEEL DECKING PERPENDICULAR TO BEAM #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) SEE PLAN AND SCHEDULE EDGE BEAM SEE PLAN BEAM SEE PLAN STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS 14 GA BENT PL CONT (2) #4 CONT CANTILEVER 2'-0" MAX TYPICAL SEE "TYPICAL SLAB EDGE DETAILS" DETAIL "A" WHERE OVERHANG <1'-0" 1/2" RETURN TYP AT TOP OF BENT PL EDGE FORM L1 L2 L3 L4 2 1/2" MIN . 3" MIN BEARING 2" MIN 1" CLR TO WWF TYP 3/4" CLR TO REBAR TYP A . .
