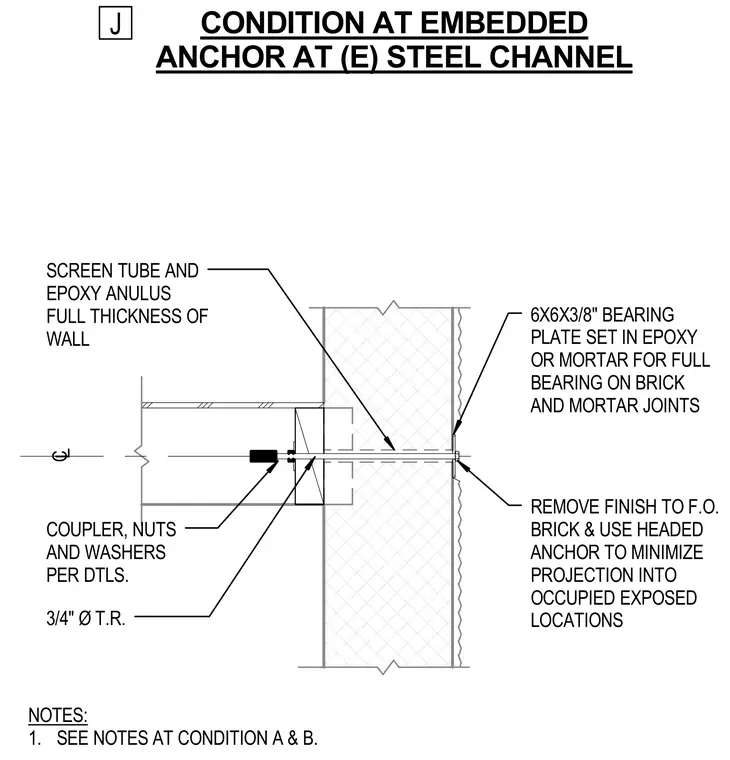

An existing steel channel connects through a masonry wall using a three-quarter-inch threaded rod secured with couplers, nuts, and washers. A 6x6x3/8-inch bearing plate is set in epoxy or mortar for full bearing on brick and mortar joints. A screen tube with epoxy fills the annulus across the full thickness of the wall. Finishes are removed to the face of brick, and a headed anchor is used to minimize projection into occupied exposed locations.
CONDITION AT EMBEDDED ANCHOR AT (E) STEEL CHANNEL J 6X6X3/8" BEARING PLATE SET IN EPOXY OR MORTAR FOR FULL BEARING ON BRICK AND MORTAR JOINTS 3/4" Ø T.R. NOTES: 1. SEE NOTES AT CONDITION A & B. L C REMOVE FINISH TO F.O. BRICK & USE HEADED ANCHOR TO MINIMIZE PROJECTION INTO OCCUPIED EXPOSED LOCATIONS SCREEN TUBE AND EPOXY ANULUS FULL THICKNESS OF WALL COUPLER, NUTS AND WASHERS PER DTLS.
