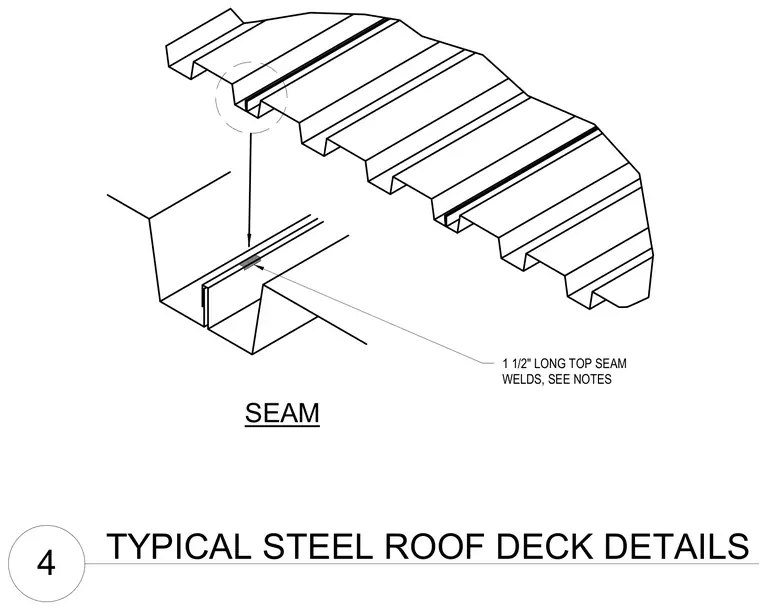

The steel roof deck side lap connection features a top seam weld specified at one and one-half inches long. Welds are executed along the adjoining flanged edges of the profiled metal deck panels per structural notes. The connection provides lateral shear transfer between adjacent corrugated steel deck units.
