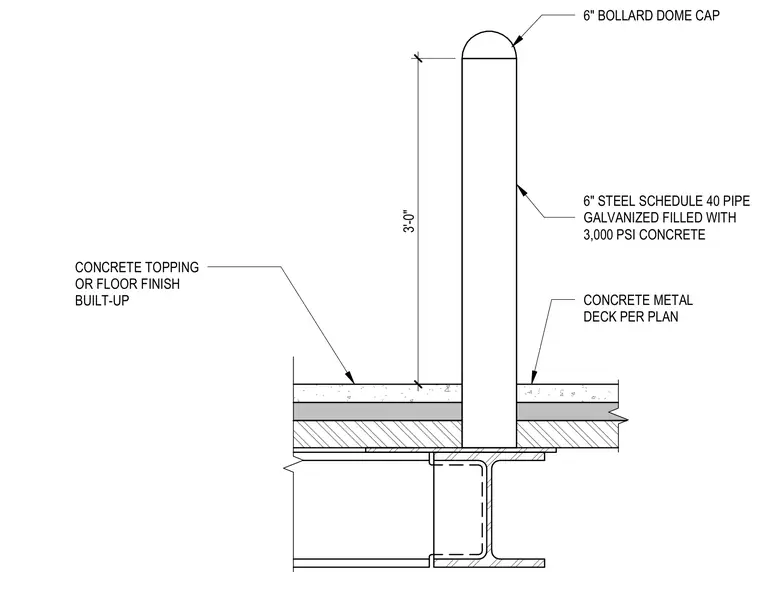

A six-inch steel schedule forty pipe is galvanized and filled with three thousand PSI concrete, extending three feet above the finished floor. The bollard passes through the concrete topping or built-up floor finish and the concrete metal deck per plan, bearing directly on the structural steel framing below. A six-inch bollard dome cap finishes the top of the pipe.
CONCRETE METAL DECK PER PLAN 6" STEEL SCHEDULE 40 PIPE GALVANIZED FILLED WITH 3,000 PSI CONCRETE 6" BOLLARD DOME CAP CONCRETE TOPPING OR FLOOR FINISH BUILT-UP 3'-0"
