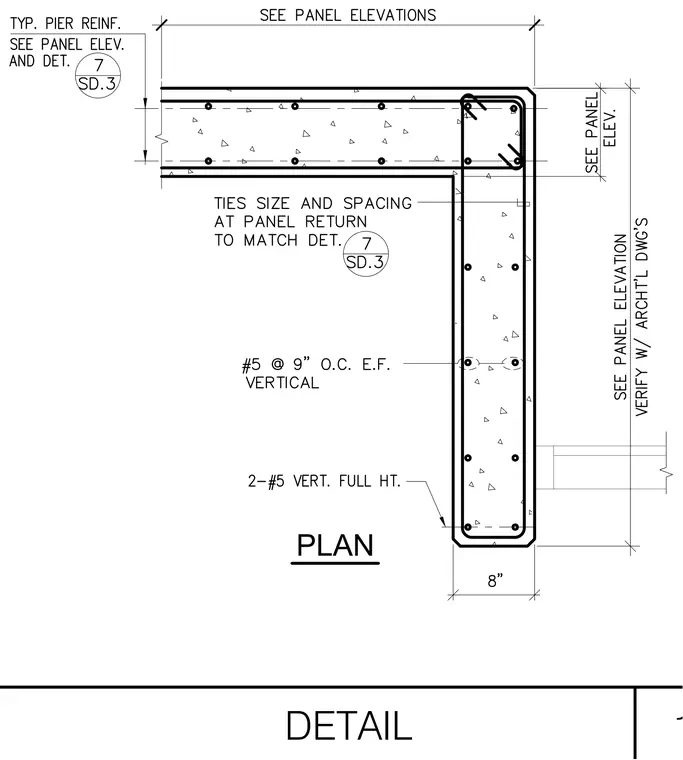

An eight-inch thick reinforced concrete wall corner contains vertical reinforcement of number five bars spaced at nine inches on center each face, supplemented by two number five vertical bars running full height at the corner. Panel returns and ties are sized in accordance with detail 7 on sheet SD.3. Typical pier reinforcement and overall dimensions reference the architectural drawings and panel elevations.
