A glass fiber reinforced concrete panel connects to structural steel framing using a push-pull tube and angle assembly provided by the GFRC fabricator. The support framing incorporates a three-eighths-inch full height stiffener plate welded with a one-quarter-inch typical fillet weld. A brace angle aligns with the push-pull connection as indicated in the plans. The GFRC panel itself is supplied by others.

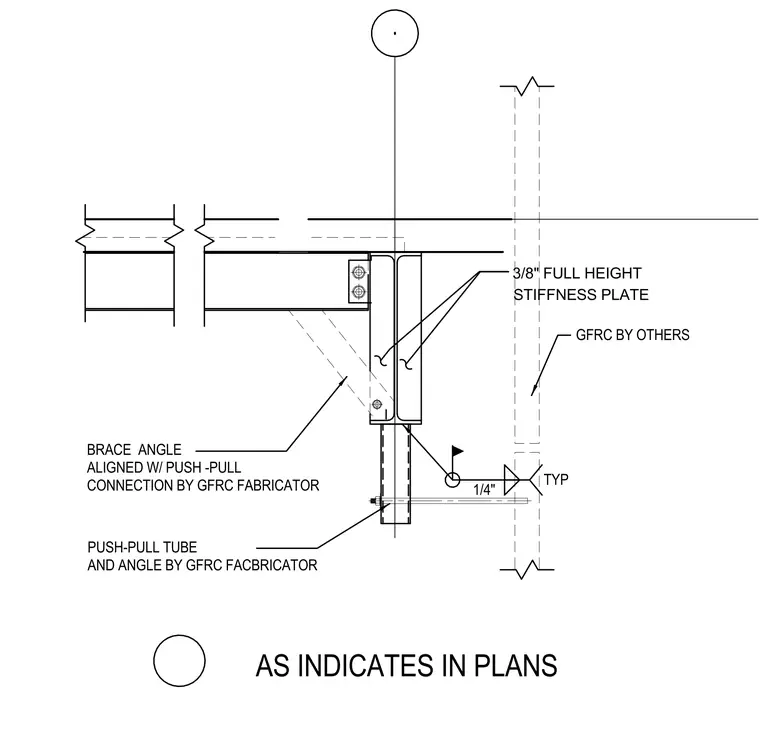

1/4" TYP . AS INDICATES IN PLANS GFRC BY OTHERS PUSH-PULL TUBE AND ANGLE BY GFRC FACBRICATOR BRACE ANGLE ALIGNED W/ PUSH -PULL CONNECTION BY GFRC FABRICATOR 3/8" FULL HEIGHT STIFFNESS PLATE
