Structural · S-ZSX2F

W8, W10, W12 and W14 Beams Shear Tab Connection

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Bolted Connection Expansion / Slip Connection

About this detail

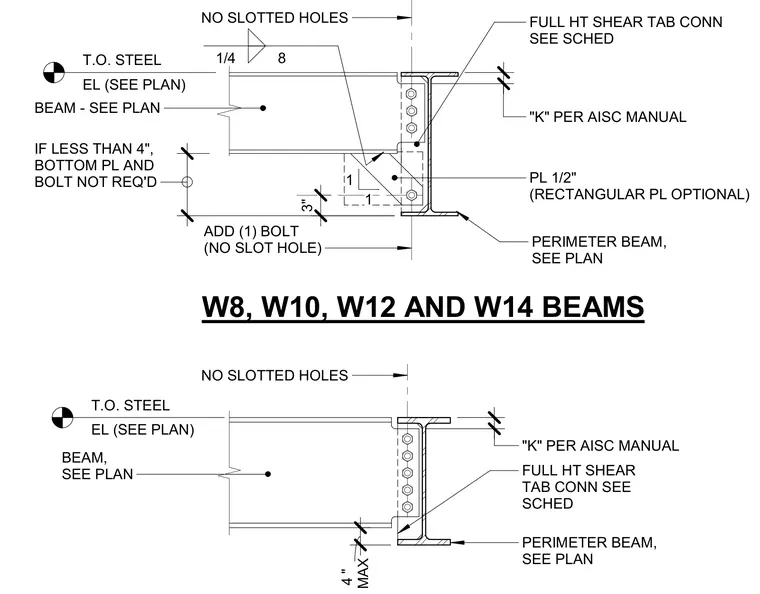

A W8, W10, W12, or W14 framing beam connects to a perimeter beam using a full-height shear tab sized per schedule and the AISC Manual. The connection utilizes a one-half-inch rectangular plate option welded with a quarter-inch fillet weld, featuring unslotted bolt holes. When the distance from the bottom is less than four inches, the bottom plate and bolt are omitted, while a maximum four-inch clearance governs typical spacing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
