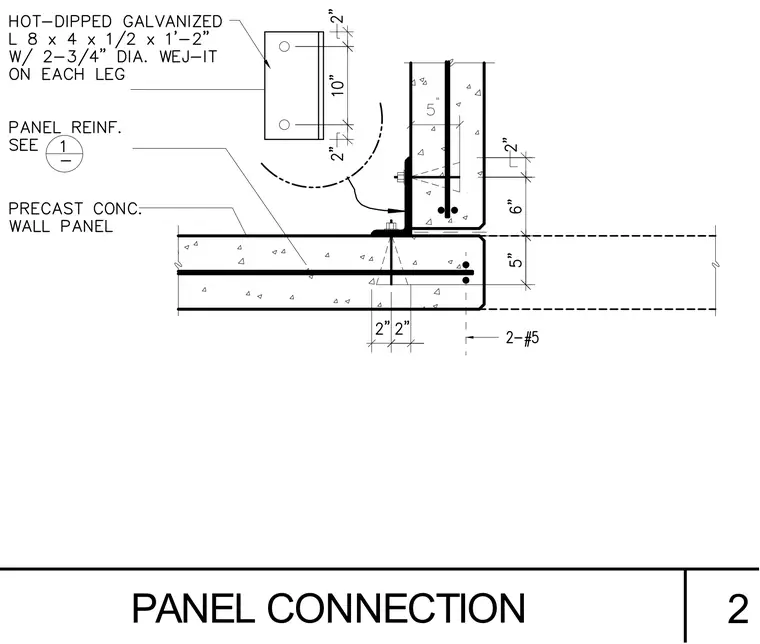

Precast concrete wall panels meet at a corner joint tied together with a hot-dipped galvanized angle measuring eight inches by four inches by one-half inch and one foot two inches long. The angle connects to the panels using two three-quarter-inch diameter wedge anchors on each leg. Panel reinforcement consists of two number five bars placed within the five-inch thick concrete panels.
