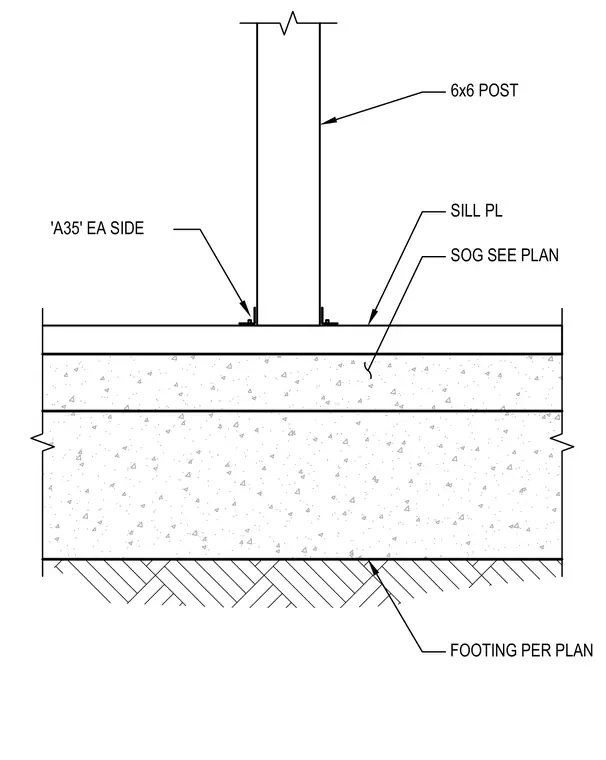

A six-by-six wood post bears onto a concrete slab on grade over a structural footing sized per plan. The post base is secured with a sill plate and connection clips installed on each side.
