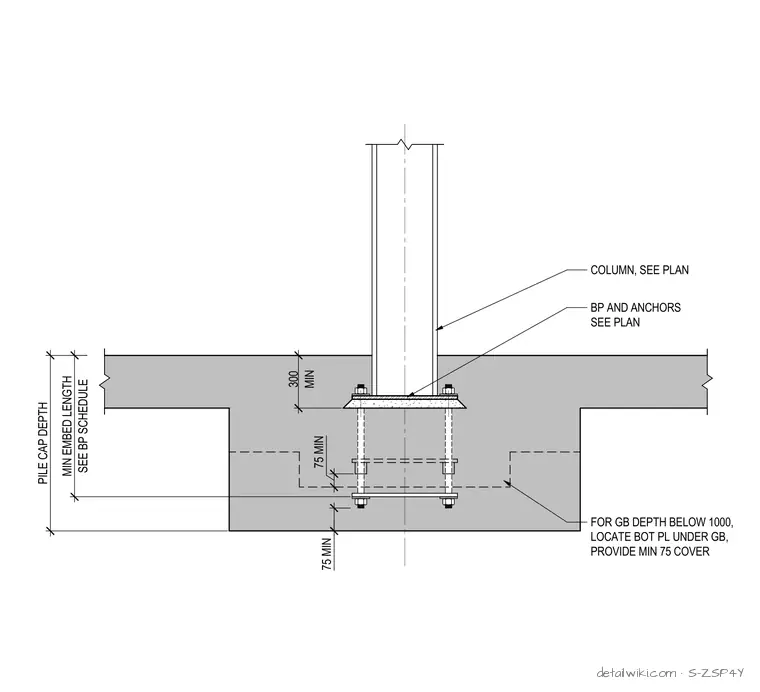

The detail shows a steel column connected via a base plate and anchor bolts that extend down into a concrete pile cap. It features specific dimensional annotations for minimum embedment length, concrete cover requirements, and bottom plate positioning relative to grade beams.
Text on the drawing
PILE CAP DEPTH MIN 300 COLUMN, SEE PLAN BP AND ANCHORS SEE PLAN FOR GB DEPTH BELOW 1000, LOCATE BOT PL UNDER GB, PROVIDE MIN 75 COVER 75 MIN SEE BP SCHEDULE MIN EMBED LENGTH 75 MIN
