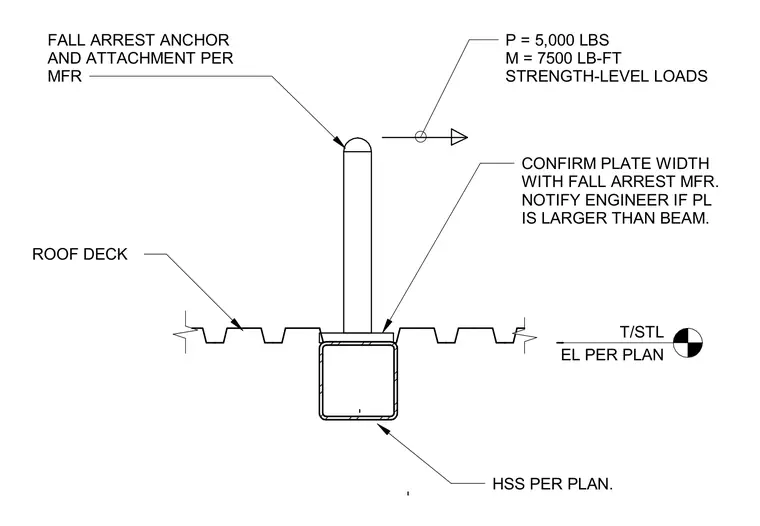

A fall arrest anchor and its attachment are mounted per manufacturer specifications above a roof deck and a hollow structural section support sized per plan. Strength-level loads are specified as five thousand pounds of force and seven thousand five hundred pound-feet of moment. The plate width must be confirmed with the fall arrest manufacturer, and the engineer must be notified if the plate is larger than the beam.
T/STL EL PER PLAN HSS PER PLAN. FALL ARREST ANCHOR AND ATTACHMENT PER MFR ROOF DECK P = 5,000 LBS M = 7500 LB-FT STRENGTH-LEVEL LOADS CONFIRM PLATE WIDTH WITH FALL ARREST MFR. NOTIFY ENGINEER IF PL IS LARGER THAN BEAM.
