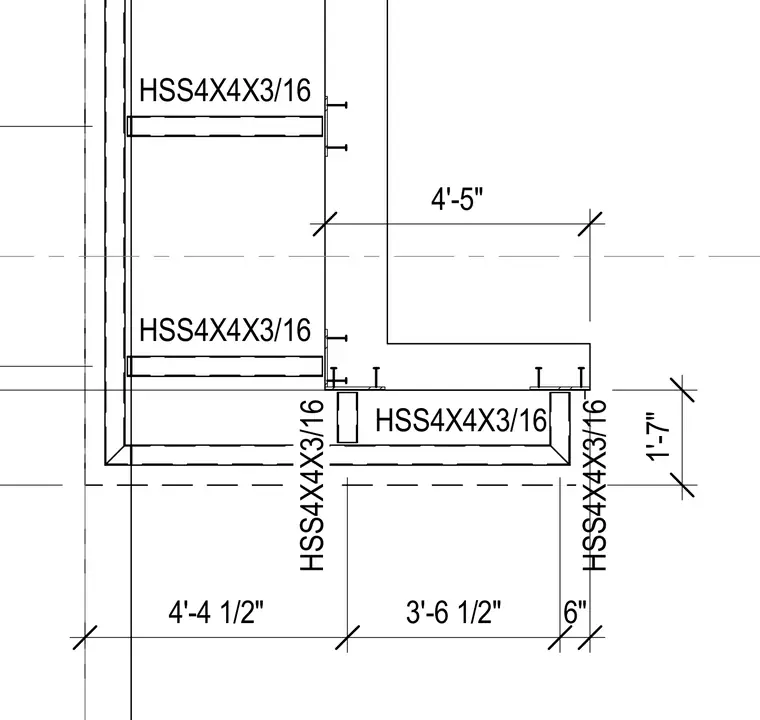

This structural plan view details an arrangement of hollow structural section members designated as HSS4X4X3/16. The framing layout includes dimensioned segments measuring four feet four and a half inches, three feet six and a half inches, six inches, one foot seven inches, and four feet five inches. Connection angles and plates tie the intersecting tubular steel members together at the corners and junctions.
HSS4X4X3/16 HSS4X4X3/16 HSS4X4X3/16 HSS4X4X3/16 HSS4X4X3/16 4'-4 1/2" 3'-6 1/2" 6" 1'-7" 4'-5"
