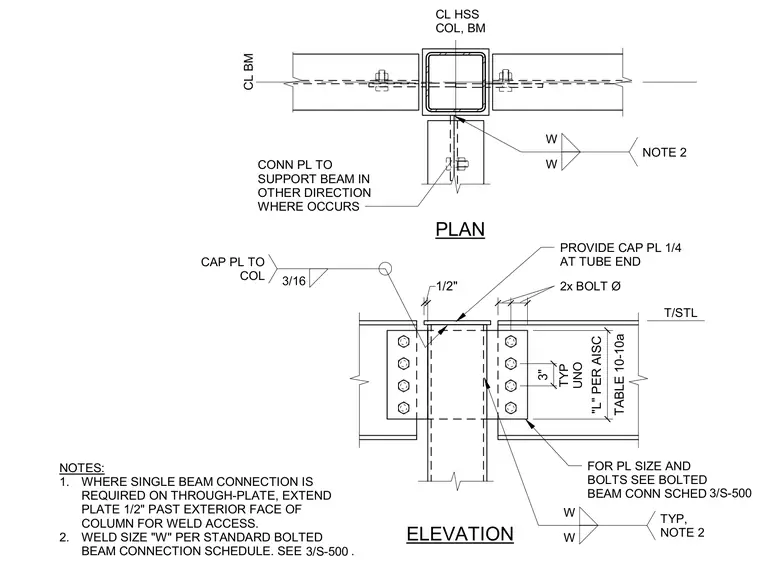

Steel framing connection joining beams to a hollow structural section column via a continuous through-plate. The assembly features a one-quarter-inch cap plate at the tube end welded with a three-sixteenth-inch fillet weld to the column. Beams attach to the connection plate using bolts spaced at three inches typical unless noted otherwise, with plate sizes and bolt diameters per the bolted beam connection schedule. Single-beam connections on the through-plate extend one-half inch past the exterior face of the column to allow weld access.
T/STL CL BM CL HSS COL, BM W W NOTE 2 W W TYP, NOTE 2 2x BOLT Ø FOR PL SIZE AND BOLTS SEE BOLTED BEAM CONN SCHED 3" TABLE 10-10a "L" PER AISC TYP UNO NOTES: 1. WHERE SINGLE BEAM CONNECTION IS REQUIRED ON THROUGH-PLATE, EXTEND PLATE 1/2" PAST EXTERIOR FACE OF COLUMN FOR WELD ACCESS. 2. WELD SIZE "W" PER STANDARD BOLTED BEAM CONNECTION SCHEDULE. SEE . PLAN ELEVATION CONN PL TO SUPPORT BEAM IN OTHER DIRECTION WHERE OCCURS 3/S-500 PROVIDE CAP PL 1/4 AT TUBE END 3/16 CAP PL TO COL 1/2" 3/S-500
