Structural · S-ZSAW5

Post-Tensioned Girder and Concrete Wall Connection

Materials

Concrete Reinforced Concrete

Elements

Beams Walls Floors / Slabs Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

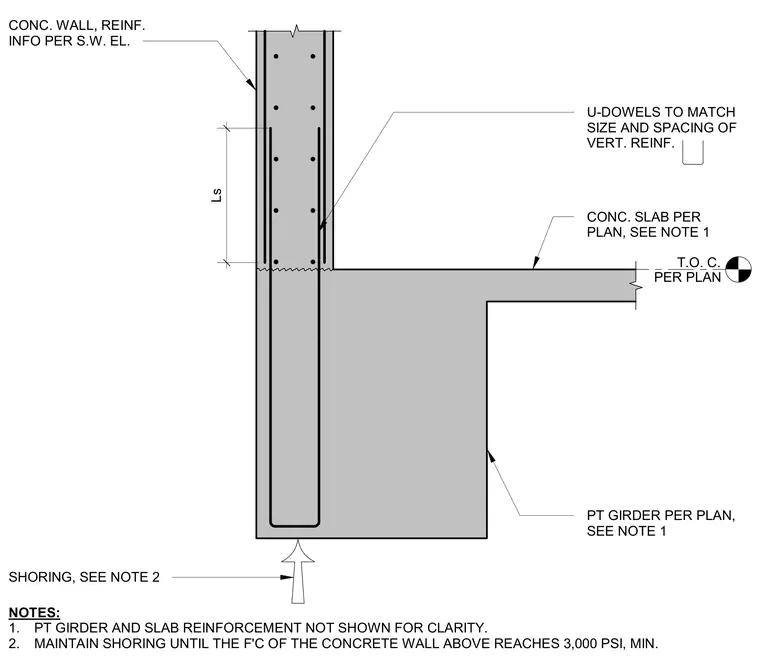

A reinforced concrete wall bears on a post-tensioned concrete girder, with vertical reinforcement tied through U-dowels matched in size and spacing to the vertical wall reinforcement. Shoring is maintained beneath the girder until the compressive strength of the concrete wall above reaches a minimum of 3,000 psi. Post-tensioned girder and slab reinforcement are omitted from the main view for clarity. Vertical reinforcement lap length Ls is detailed at the cold joint between the girder and the wall above.
