Structural · S-ZS38Y

Reinforcing Bar Weld Details and Schedule

Materials

Metal (misc.)

Elements

Reinforcing Roof / Floor Openings

Connections

Welded Connection

About this detail

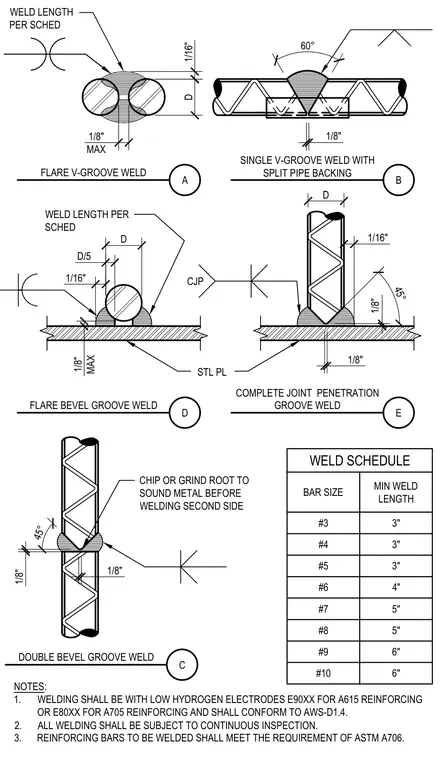

This drawing outlines standard welded connections and requirements for reinforcing bars, including flare V-groove welds, single V-groove welds with split pipe backing, flare bevel groove welds, complete joint penetration groove welds, and double bevel groove welds on steel plates. A weld schedule correlates bar sizes from number three through number ten with corresponding minimum weld lengths. Notes specify low hydrogen electrodes E90XX for A615 reinforcing or E80XX for A705 reinforcing conforming to AWS-D1.4, continuous inspection for all welding, and that reinforcing bars to be welded must meet ASTM A706 requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
