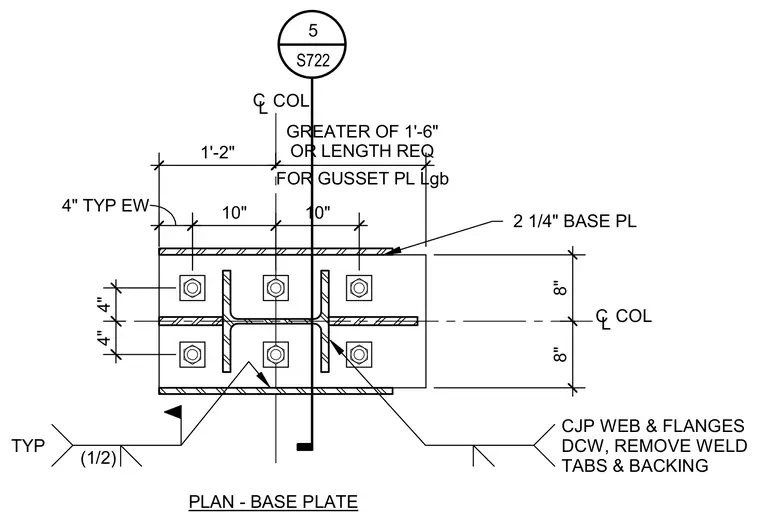

A structural steel column base plate plan detail featuring a two-and-a-quarter-inch base plate welded to the column with complete joint penetration welds on the web and flanges. Weld tabs and backing are removed, and a one-half-inch fillet weld is specified typically. Gusset plates extend the greater of one foot six inches or the required length, anchored with bolts arranged around the column profile.
CL COL CL COL 8" 8" 1'-2" 2 1/4" BASE PL CJP WEB & FLANGES DCW, REMOVE WELD TABS & BACKING PLAN - BASE PLATE 4" TYP EW FOR GUSSET PL Lgb GREATER OF 1'-6" OR LENGTH REQ (1/2) TYP 5 S722 10" 10" 4" 4"
