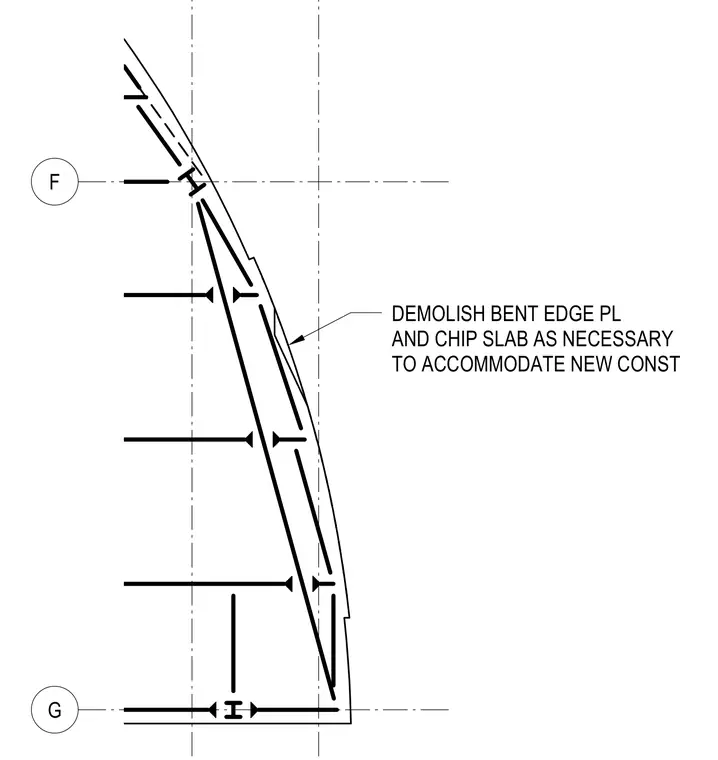

Demolish existing bent edge plate and chip concrete slab edge as necessary to accommodate new construction. The structural layout references grid lines F and G along a framed slab edge.
