An HSS post supported by a concrete masonry unit wall carries an HSS6x4x1/4 beam spaced at ten feet maximum. A C12x20.7 channel frames into the assembly with a quarter-inch fillet weld indicated by the weld symbol. Metal deck spans above as sized per plan. The hollow structural section post continues down into the CMU wall as shown on plan.

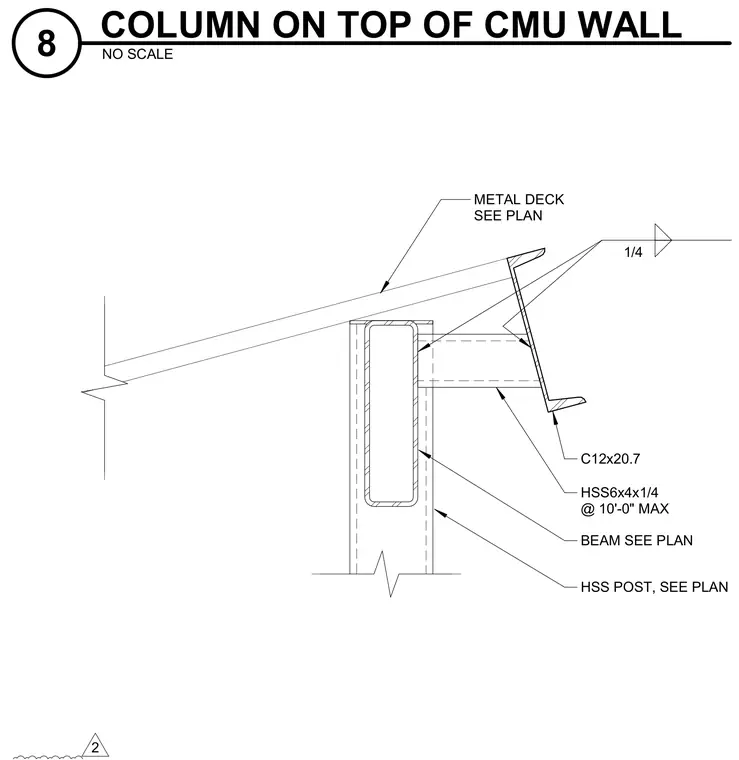

C12x20.7 HSS6x4x1/4 @ 10'-0" MAX BEAM SEE PLAN HSS POST, SEE PLAN METAL DECK SEE PLAN 1/4 2 NO SCALE 8 COLUMN ON TOP OF CMU WALL
