A spreader beam connects to an HSS structural member using quarter-inch thick steel plates welded to each side with three-sixteenth-inch fillet welds. Two three-quarter-inch diameter through-bolts pass through horizontal short slotted holes in the connection plates. A maximum one-half-inch gap is maintained between the connected members, with a one-inch maximum dimension noted at the framing condition. Top of slab elevation and beam sizes are sized per plan.

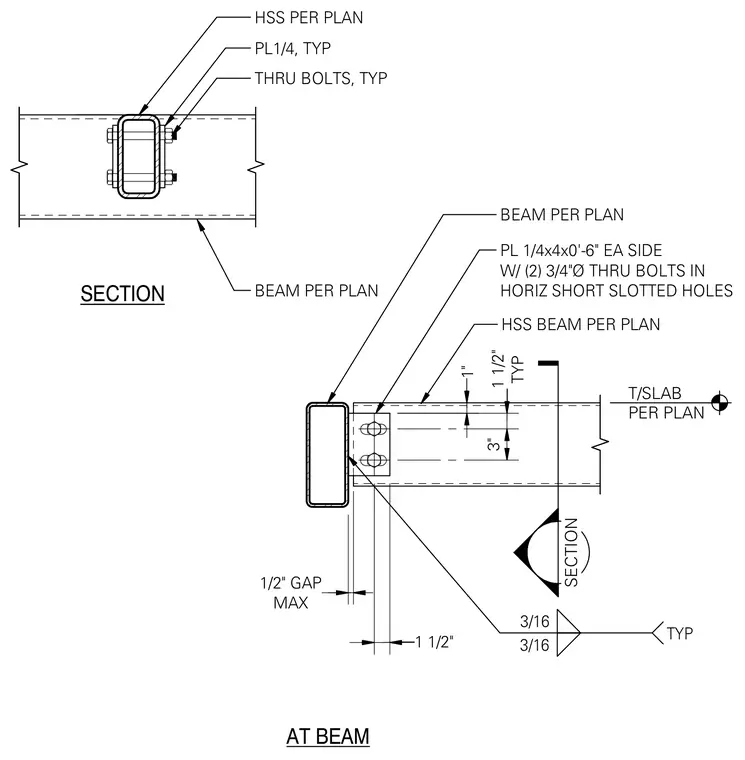

1" MAX 1/2" GAP AT BEAM BEAM PER PLAN SECTION PL1/4, TYP THRU BOLTS, TYP HSS PER PLAN PL 1/4x4x0'-6" EA SIDE W/ (2) 3/4"Ø THRU BOLTS IN HORIZ SHORT SLOTTED HOLES BEAM PER PLAN 3/16 3/16 TYP HSS BEAM PER PLAN SECTION 3" TYP 1 1/2" 1 1/2" T/SLAB PER PLAN
