Typical Braced Frame Column and Anchorage

Materials

Concrete Reinforced Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate Base Plate / Anchorage Bracing Connection Bolted Connection Rebar Splice / Development

About this detail

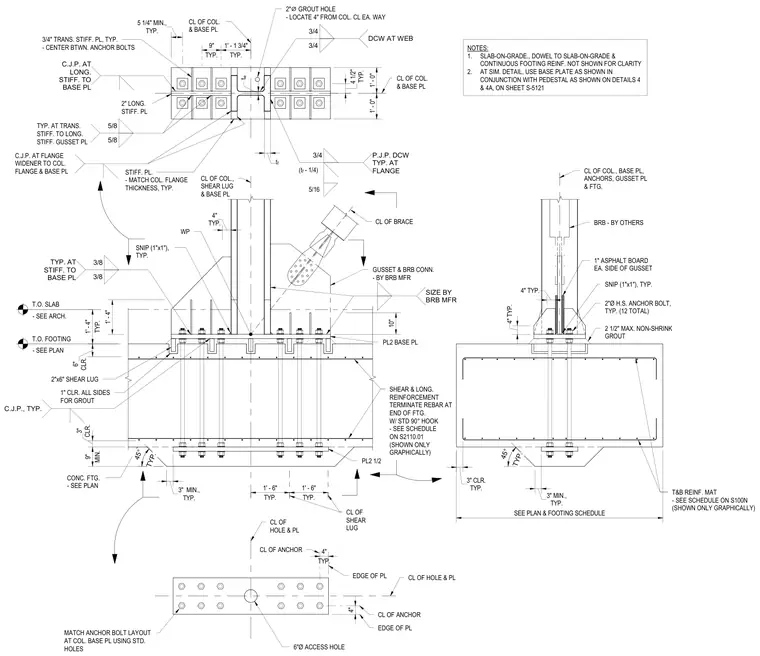

A heavy steel column and buckling-restrained brace connection are anchored to a reinforced concrete footing with a thick base plate and twelve two-inch diameter high-strength anchor bolts. A shear lug welded to the bottom of the base plate extends into the concrete footing, surrounded by non-shrink grout and asphalt board at the gusset plates. Stiffener plates and complete joint penetration welds reinforce the column flanges, web, and gusset plate assembly. The concrete footing includes top and bottom reinforcing mats with standard hooks, while slab-on-grade dowels and continuous footing reinforcement are omitted for clarity.
