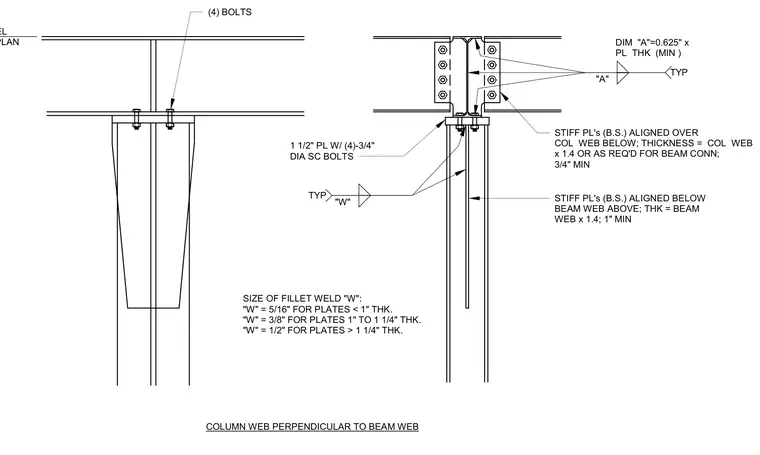

This structural steel detail shows a cantilevered beam connection over a column where the column web is perpendicular to the beam web. A one-and-a-half-inch plate connects via four three-quarter-inch diameter slip-critical bolts. Stiffener plates are aligned on both sides over the column web below, with a minimum thickness based on the column web times one and four-tenths or as required for the beam connection and a three-quarter-inch minimum. Additional stiffener plates are aligned below the beam web above, with a thickness equal to the beam web times one and four-tenths and a one-inch minimum. Fillet weld sizes are specified by plate thickness, ranging from five-sixteenths of an inch for plates under one inch up to one-half of an inch for plates over one and one-quarter inches thick.
COLUMN WEB PERPENDICULAR TO BEAM WEB T.O. STEEL EL. SEE PLAN (4) BOLTS "A" TYP DIM "A"=0.625" x PL THK (MIN ) STIFF PL's (B.S.) ALIGNED OVER COL WEB BELOW; THICKNESS = COL WEB x 1.4 OR AS REQ'D FOR BEAM CONN; 3/4" MIN STIFF PL's (B.S.) ALIGNED BELOW BEAM WEB ABOVE; THK = BEAM WEB x 1.4; 1" MIN "W" TYP 1 1/2" PL W/ (4)-3/4" DIA SC BOLTS SIZE OF FILLET WELD "W": "W" = 5/16" FOR PLATES < 1" THK. "W" = 3/8" FOR PLATES 1" TO 1 1/4" THK. "W" = 1/2" FOR PLATES > 1 1/4" THK.
