Structural · S-ZR435

HSS Brace and Beam Web Connection at W-Column

Materials

Steel

Elements

Columns Beams Bracing Connections / Plates Reinforcing

Connections

Braced Frame Connection Gusset Plate HSS Connection Bracing Connection Welded Connection Bolted Connection

About this detail

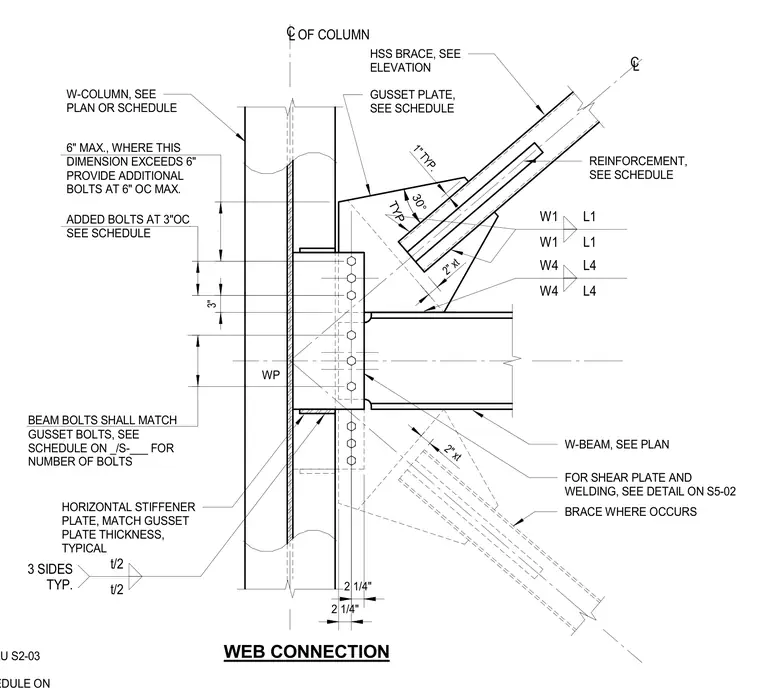

This structural steel connection features an HSS brace and a W-beam framing into a wide-flange column using a gusset plate and a web connection plate. A horizontal stiffener plate matches the gusset plate thickness. Additional bolts spaced at three inches on center are provided where the dimensional clearance exceeds six inches. Beam bolts match the gusset bolts per the structural schedule. Welds are specified on three sides typically with sizing relative to plate thickness.
