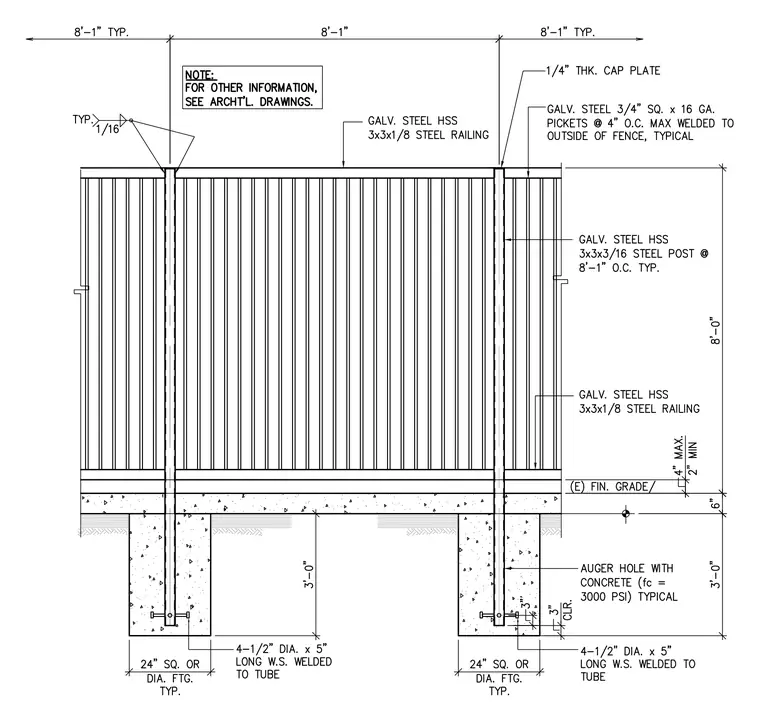

Galvanized steel hollow structural section posts measuring 3x3x3/16 inches are spaced at 8 feet 1 inch on center and anchored into 24-inch square or diameter concrete footings with 3000 PSI compressive strength. A 1/4-inch thick cap plate sits atop each post, and 3/4-inch square by 16-gauge pickets are welded to the outside of the fence spaced at 4 inches on center maximum. Galvanized steel hollow structural section 3x3x1/8 rails run horizontally along the fence. Four 1/2-inch diameter by 5-inch long welded studs are welded to the tube within the concrete footing. A note directs to architectural drawings for further information.
