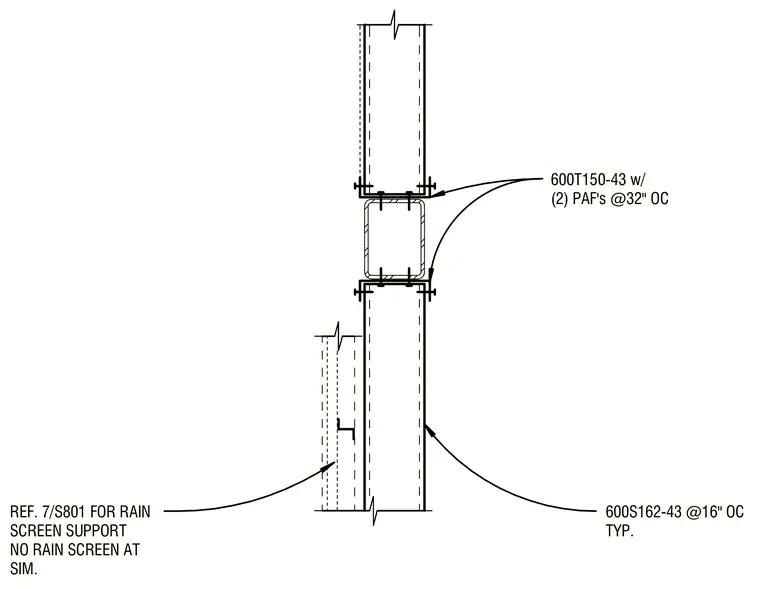

Cold-formed steel stud framing utilizes 600S162-43 studs spaced at sixteen inches on center typically. Top and bottom tracks use 600T150-43 sections secured with two powder-actuated fasteners spaced at thirty-two inches on center. Rain screen support references sheet 7/S801 where applicable, with no rain screen installed at similar conditions.
600S162-43 @16" OC TYP. 600T150-43 w/ (2) PAF's @32" OC REF. 7/S801 FOR RAIN SCREEN SUPPORT NO RAIN SCREEN AT SIM. 600S162-43 @16" OC TYP. 600T150-43 w/ (2) PAF's @32" OC REF. 7/S801 FOR RAIN SCREEN SUPPORT NO RAIN SCREEN AT SIM.
