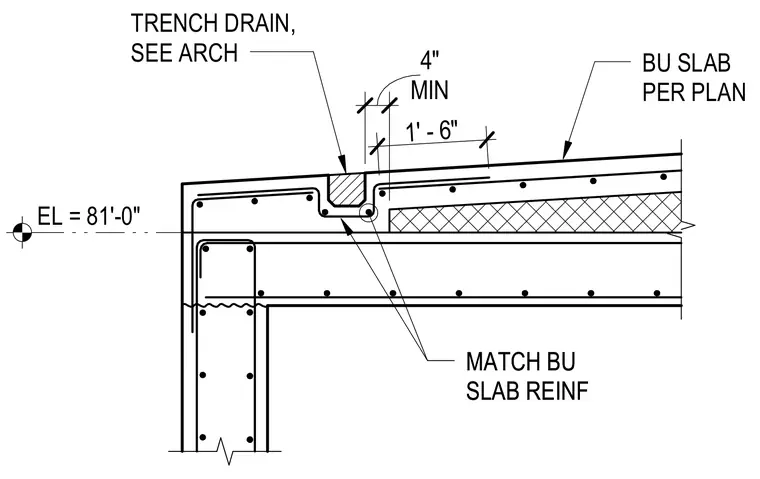

A structural concrete slab features a recessed trench drain located per the architectural drawings near the slab edge. Reinforcing steel matches the build-up slab with a minimum four-inch clearance and one-foot six-inch lap splice. The assembly sits at a reference elevation of eighty-one feet zero inches.
BU SLAB PER PLAN TRENCH DRAIN, SEE ARCH EL = 81'-0" MIN 4" MATCH BU SLAB REINF 1' - 6" MATCH BU SLAB REINF
