Structural · S-ZQ984

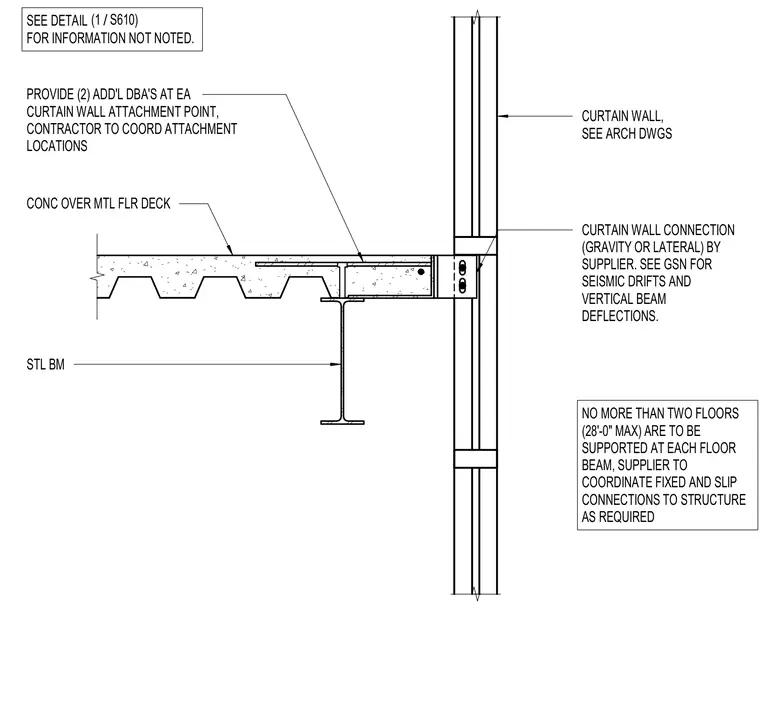

Typical Curtain Wall Attachment

Materials

Concrete Metal (misc.)

Elements

Beams Walls Curtain Walls Floors / Slabs Decks Arches Connections / Plates

Connections

Deck Attachment Expansion / Slip Connection

About this detail

A curtain wall system connects to the perimeter structural steel floor beam and concrete-filled metal floor deck. Two additional deck-edge anchors are provided at each curtain wall attachment point, with the exact locations coordinated by the contractor. The curtain wall supplier designs and provides both gravity and lateral connections, accounting for seismic drifts and vertical beam deflections per the general structural notes. A maximum of two floors, spanning up to twenty-eight feet, may be supported at each floor beam, requiring the supplier to coordinate fixed and slip connections to the primary structure.
