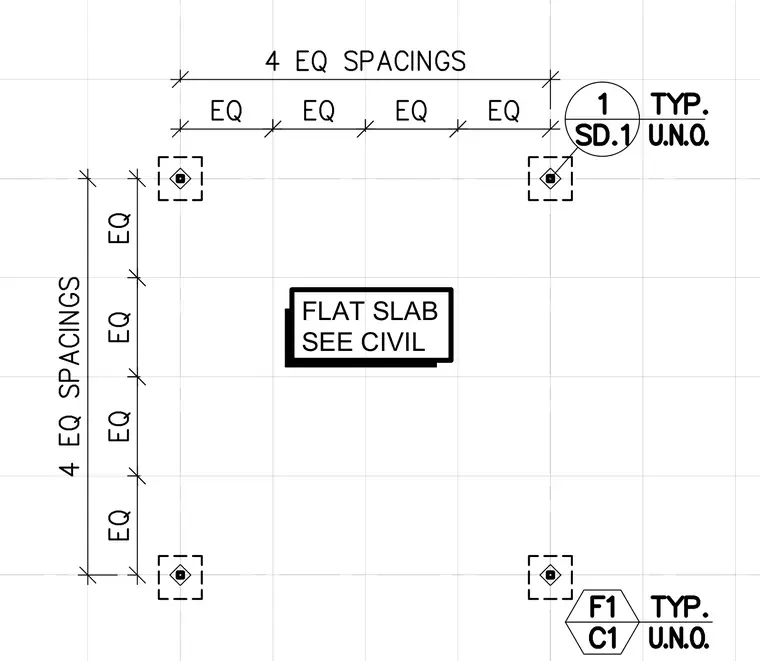

A flat slab layout featuring four equal spacings along both orthogonal axes with typical structural supports marked unless noted otherwise. The drawing references civil engineering plans for slab specifications.
