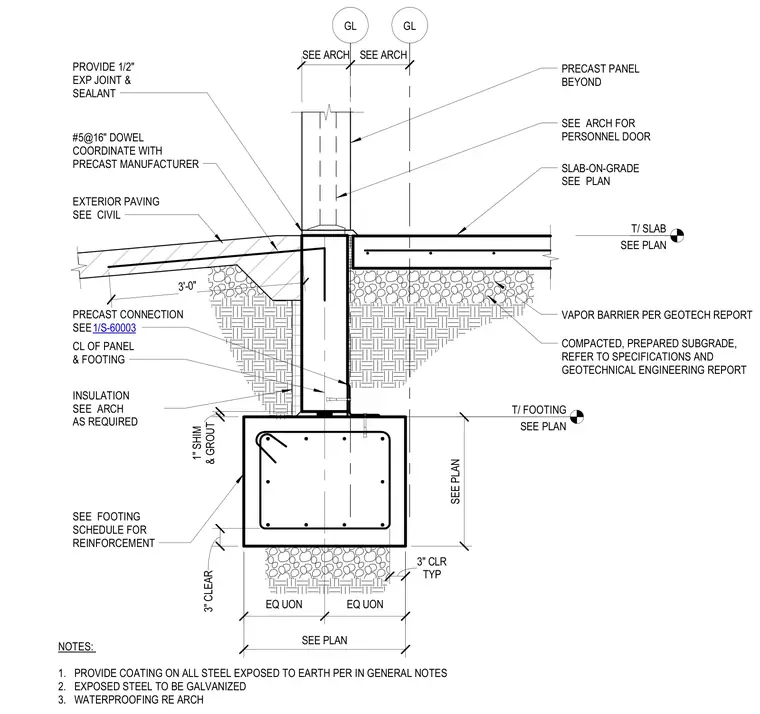

A reinforced concrete footing supports a precast concrete wall panel aligned at its centerline, with a number five dowel at sixteen inches on center coordinated with the precast manufacturer. A one-inch shim and grout space sits beneath the precast panel, which connects via a precast connection plate referenced to another detail. The interior slab-on-grade and exterior paving transition at the door threshold with a one-half-inch expansion joint and sealant. A vapor barrier sits over a compacted, prepared subgrade resting on crushed stone beneath the slab, while the footing features three inches of clear cover typical. Footing reinforcement is sized per the footing schedule, and steel exposed to earth receives a protective coating with exposed steel galvanized per notes.
GL GL SLAB-ON-GRADE SEE PLAN T/ SLAB SEE PLAN EXTERIOR PAVING SEE CIVIL SEE ARCH SEE ARCH PRECAST PANEL BEYOND SEE ARCH FOR PERSONNEL DOOR T/ FOOTING SEE PLAN CL OF PANEL & FOOTING PRECAST CONNECTION SEE 1/- COMPACTED, PREPARED SUBGRADE, REFER TO SPECIFICATIONS AND GEOTECHNICAL ENGINEERING REPORT PROVIDE 1/2" EXP JOINT & SEALANT NOTES: 1. PROVIDE COATING ON ALL STEEL EXPOSED TO EARTH PER IN GENERAL NOTES 2. EXPOSED STEEL TO BE GALVANIZED 3. WATERPROOFING RE ARCH INSULATION SEE ARCH AS REQUIRED 3'-0" #5@16" DOWEL COORDINATE WITH PRECAST MANUFACTURER SEE PLAN SEE PLAN & GROUT 1" SHIM EQ UON EQ UON 3" CLEAR SEE FOOTING SCHEDULE FOR REINFORCEMENT 1/S-60003 TYP 3" CLR VAPOR BARRIER PER GEOTECH REPORT
