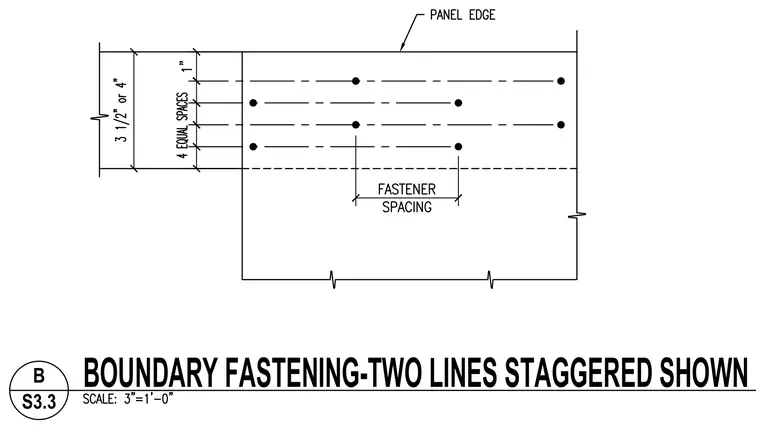

A staggered boundary fastener layout along a panel edge utilizes two lines of fasteners spaced at three and a half inches or four inches total width, with four equal spaces and a one-inch edge distance. Fasteners are arranged in staggered rows with specified fastener spacing dimensions.
