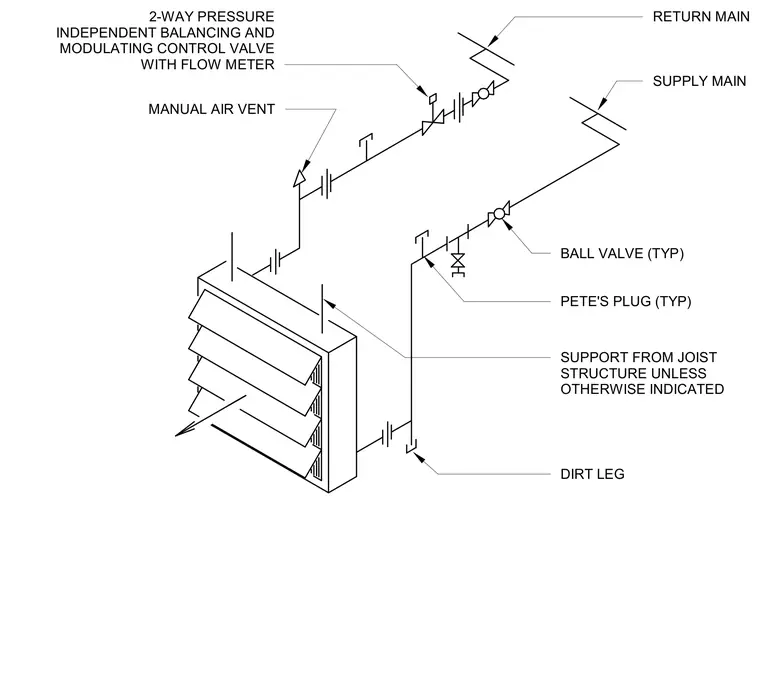

The unit heater piping assembly connects to the supply and return mains suspended from the joist structure unless otherwise indicated. The supply line incorporates typical ball valves, pressure/temperature test plugs, and a dirt leg at the drop. The return line includes a manual air vent and a two-way pressure-independent balancing and modulating control valve equipped with a flow meter. Union connections are provided throughout the piping arrangement for maintenance access and equipment isolation.
RETURN MAIN SUPPLY MAIN BALL VALVE (TYP) SUPPORT FROM JOIST STRUCTURE UNLESS OTHERWISE INDICATED DIRT LEG MANUAL AIR VENT PETE'S PLUG (TYP) 2-WAY PRESSURE INDEPENDENT BALANCING AND MODULATING CONTROL VALVE WITH FLOW METER
