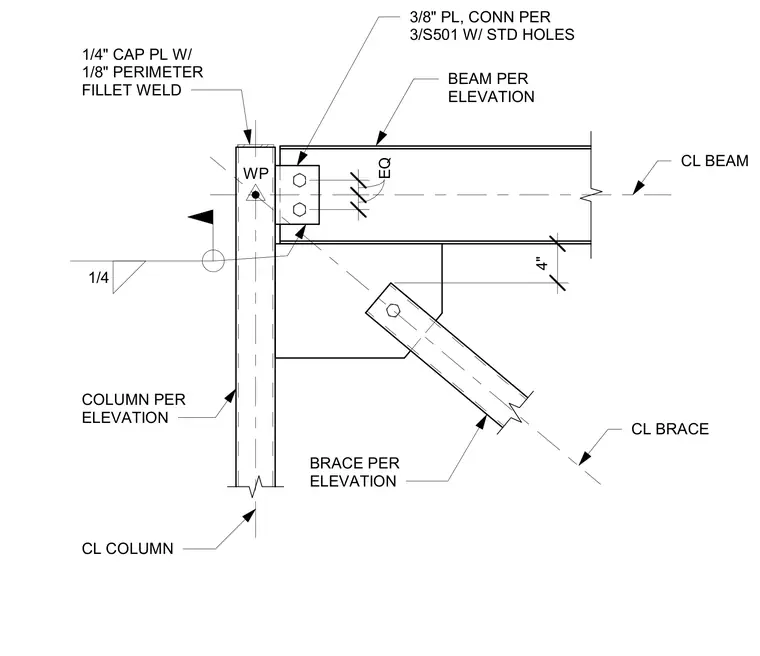

A hollow structural section column receives a one-quarter-inch thick cap plate attached with a one-eighth-inch perimeter fillet weld. A structural beam frames into the column with a three-eighth-inch connection plate utilizing standard holes and centered on the beam layout. A diagonal brace intersects the assembly at a work point four inches below the beam centerline, connecting through a gusset plate welded to the column and beam. Centerlines for the column, beam, and brace establish the working geometry.
BEAM PER ELEVATION COLUMN PER ELEVATION CL BRACE BRACE PER ELEVATION 4" WP CL BEAM CL COLUMN 1/4" CAP PL W/ 1/8" PERIMETER FILLET WELD 3/8" PL, CONN PER 3/S501 W/ STD HOLES EQ EQ 1/4
