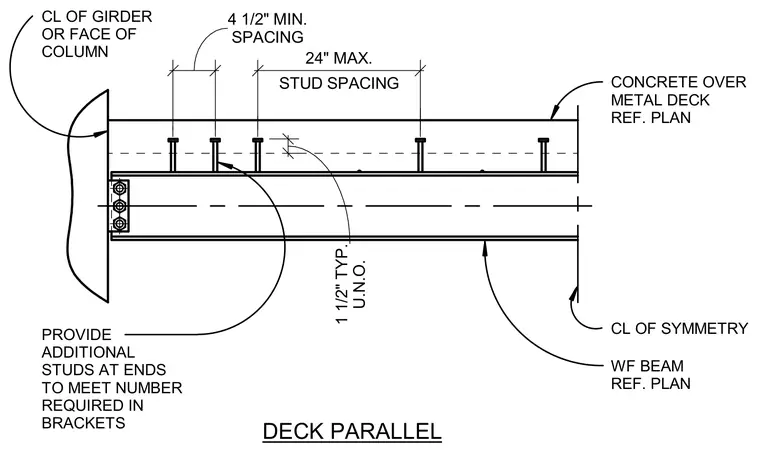

A wide-flange steel beam supports a concrete slab over metal deck running parallel to the beam. Shear studs are welded to the top flange of the beam through the metal deck. Stud spacing ranges from a minimum of four and one-half inches to a maximum of twenty-four inches, with a one and one-half inch typical clearance unless noted otherwise. Additional studs are provided at the ends to meet the quantity specified in brackets.
CL OF SYMMETRY WF BEAM REF. PLAN CONCRETE OVER METAL DECK REF. PLAN PROVIDE ADDITIONAL STUDS AT ENDS TO MEET NUMBER REQUIRED IN BRACKETS CL OF GIRDER OR FACE OF COLUMN SPACING 4 1/2" MIN. STUD SPACING 24" MAX. DECK PARALLEL U.N.O. 1 1/2" TYP.
