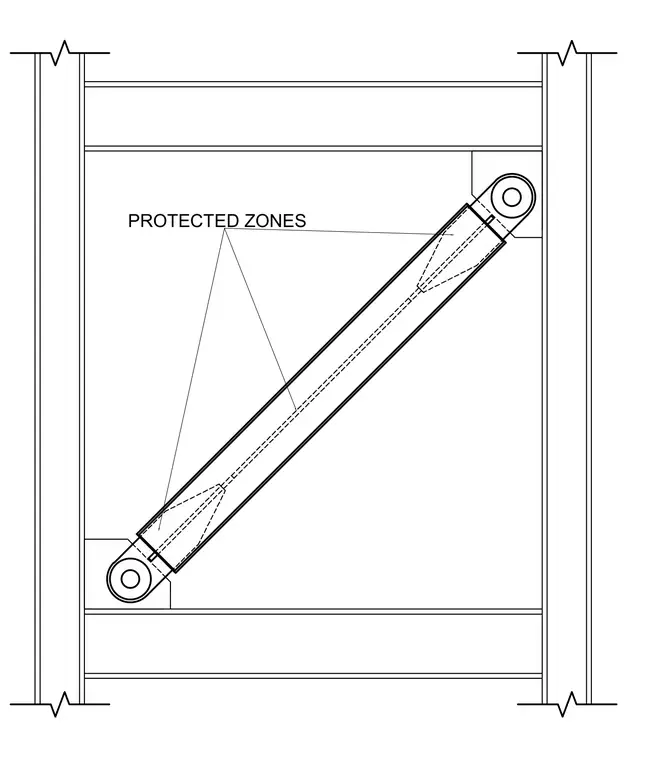

A structural steel braced frame details the designated protected zones in accordance with AISC 341 seismic provisions. The protected zones encompass the entire diagonal brace member, including the yielding segments and the gusset plate connection interfaces at both ends. No unauthorized welding, attachments, or thermal cutting are permitted within these defined regions.
