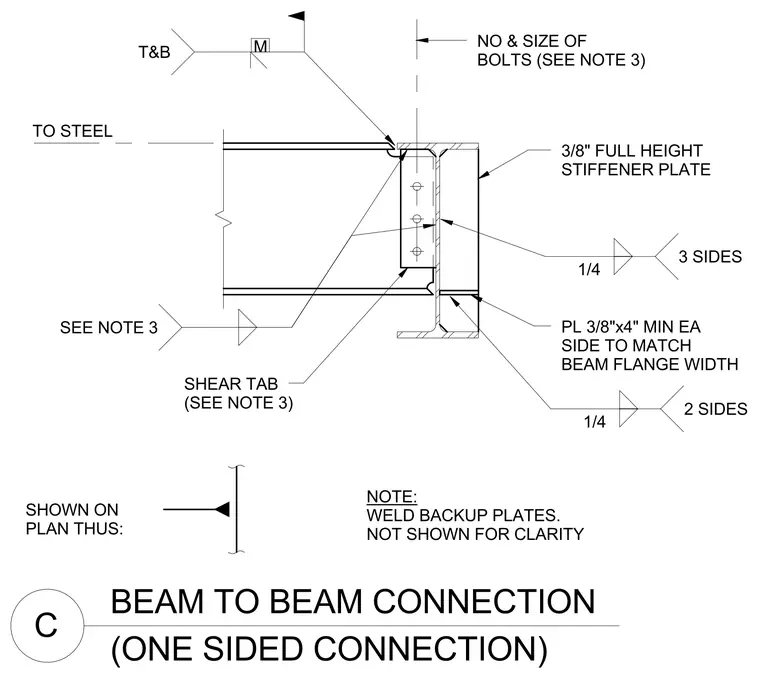

This one-sided steel beam-to-beam connection uses a shear tab bolted to the supported beam web and welded to the supporting member. The supporting member web is reinforced with three-eighths-inch full-height stiffener plates and three-eighths-by-four-inch plates on each side matching the beam flange width, welded with quarter-inch welds on two sides and three sides respectively. Weld backup plates are specified in the notes but omitted for clarity.
BEAM TO BEAM CONNECTION C (ONE SIDED CONNECTION) SHOWN ON PLAN THUS: TO STEEL NOTE: WELD BACKUP PLATES. NOT SHOWN FOR CLARITY NO & SIZE OF BOLTS (SEE NOTE 3) SHEAR TAB (SEE NOTE 3) 3/8" FULL HEIGHT STIFFENER PLATE PL 3/8"x4" MIN EA SIDE TO MATCH BEAM FLANGE WIDTH M T&B 1/4 3 SIDES SEE NOTE 3 1/4 2 SIDES
